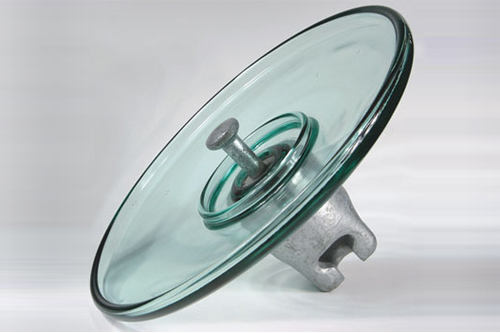

U70BP、U100BP、U120BPHits：1992
Time：2020-05-06 22:18:15 |
|---|
| 通用代号 | U70BP/146M | U100BP/127M | U120BP/127M | U120BP/146M |
| ( mm )公称直径 D | 380 | 380 | 380 | 380 |
| ( mm )结构高度 H | 146 | 127 | 127 | 146 |
| ( mm )公称爬电距离 L | 365 | 365 | 365 | 365 |
| ( mm )联接型式 | 16 | 16 | 16 | 16 |
| ( kN )机械破坏负荷 | 70 | 70 | 70 | 70 |
| ( kN )逐个拉伸负荷试验 | 35 | 35 | 35 | 35 |
| ( kV )工频湿耐受电压 | 45 | 45 | 45 | 45 |
| ( kV )雷电冲击耐受电压 | 90 | 90 | 90 | 90 |
| ( P.U )冲击击穿电压 | 2.8 | 2.8 | 2.8 | 2.8 |
| ( kV )工频击穿电压 | 130 | 130 | 130 | 130 |
| ( µV )无线电干扰 ( 10kV,1MHz) | 50 | 50 | 50 | 50 |
| ( kV )可见电晕 脚 / 帽 | 18/22 | 18/22 | 18/22 | 18/22 |
| 工频电弧试验 | 0.12s/20kA | 0.12s/20kA | 0.12s/20kA | 0.12s/20kA |
| ( kg )绝缘子单片净重 | 5.3 | 5.2 | 5.3 | 5.4 |
